Application

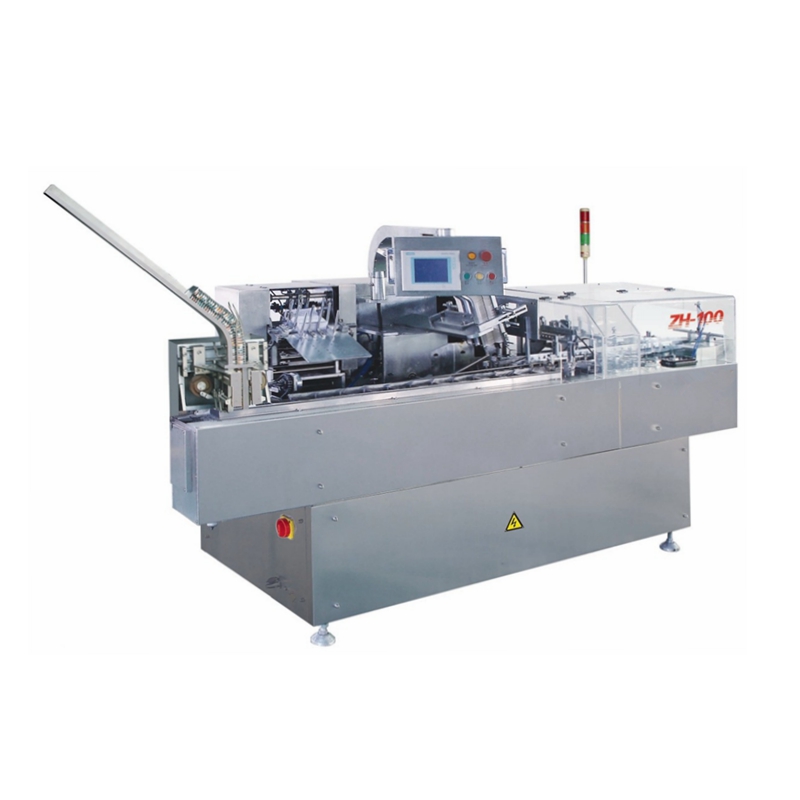

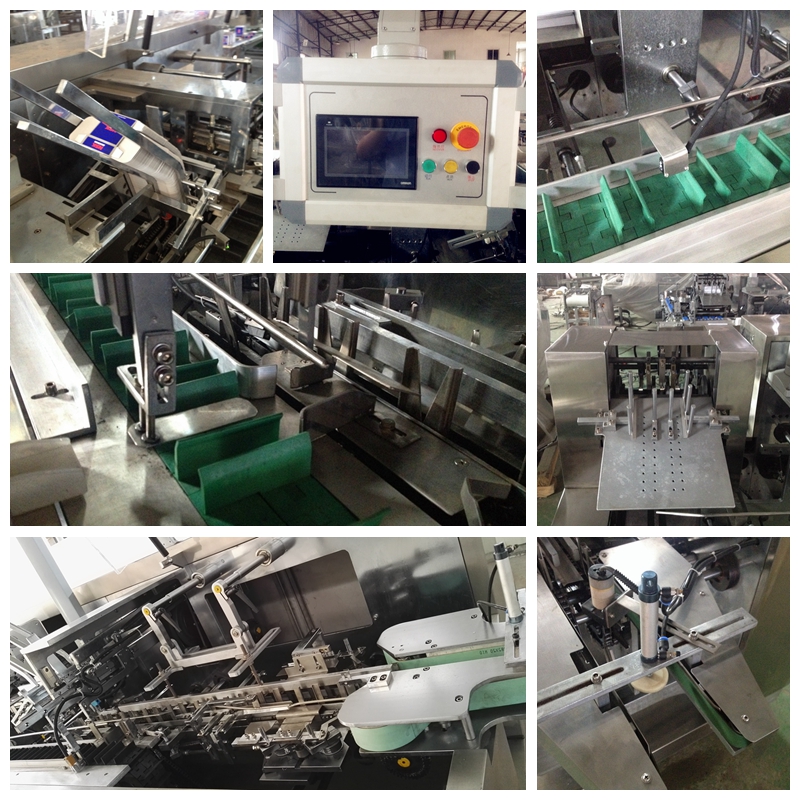

This machine is a new modern machine which designed by our company who integrated domestic and foreign vanguard technology. It is a high technology product incorporates pneumatic, photo, electric, mechanic of all in one machine. It improved by a large margin on machine performance and working efficiency, carry out encasing fast demand, keep running steady and reliable when running fast. This machine is applicable for encasing the blisters with similar product into box. It can carry out leaflet folding, carton opening, encasing, date coding, carton closing automatically. It adopts PLC control, photo electricity super vision to coordinate with every parts action. When the machine in error, the machine stopped automatically and display the error reason so that can solve the problem in time.
Features
1. Suitable for packing various products into small boxes;
2. It can be suitable for different size of boxes;
3. PLC control, box size is adjustable;
4. Easy to operate, pre-folding system is available.
5. With automatic condom feeder
6. Waste box rejection system.
Technical Parameter
|
Model |
ZH-100 |
|
Output Capacity |
50-100 box/min |
|
Volume of Consumption |
120-160L/min |
|
Box Requirement |
250-350 g/m2 |
|
Box Size |
Modified Max Size: 200×225×60mm (Old Max size: 200×140×60mm) |
|
Min Size 50×20×14mm |
|
|
Leaflet Requirement |
55-65 g/m2 |
|
Leaflet Size |
Max Size 240×190 |
|
Min Size 90×80 |
|
|
Voltage |
220/380V 50HZ 3PHASE 1.5KW |
|
ABT Overall Dimension |
3300×1500×1700mm |
|
ABT Weight |
1500KG |
