Application

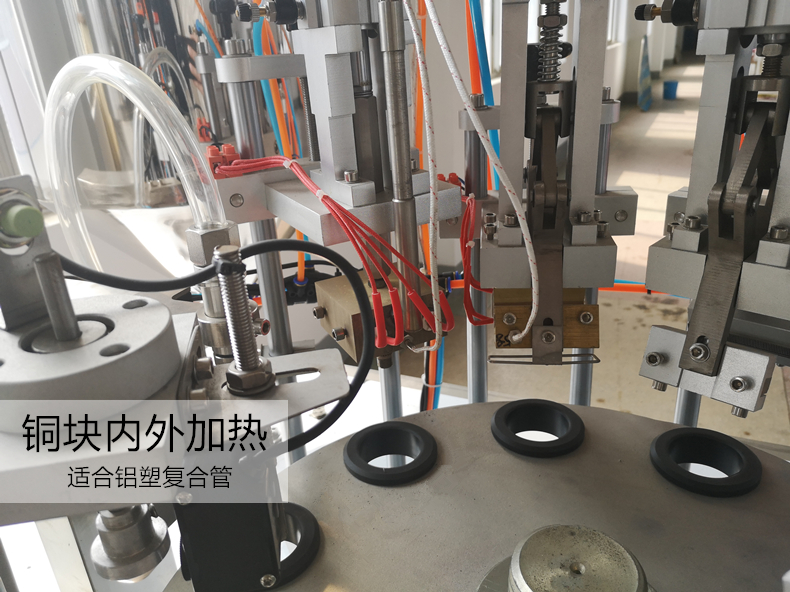

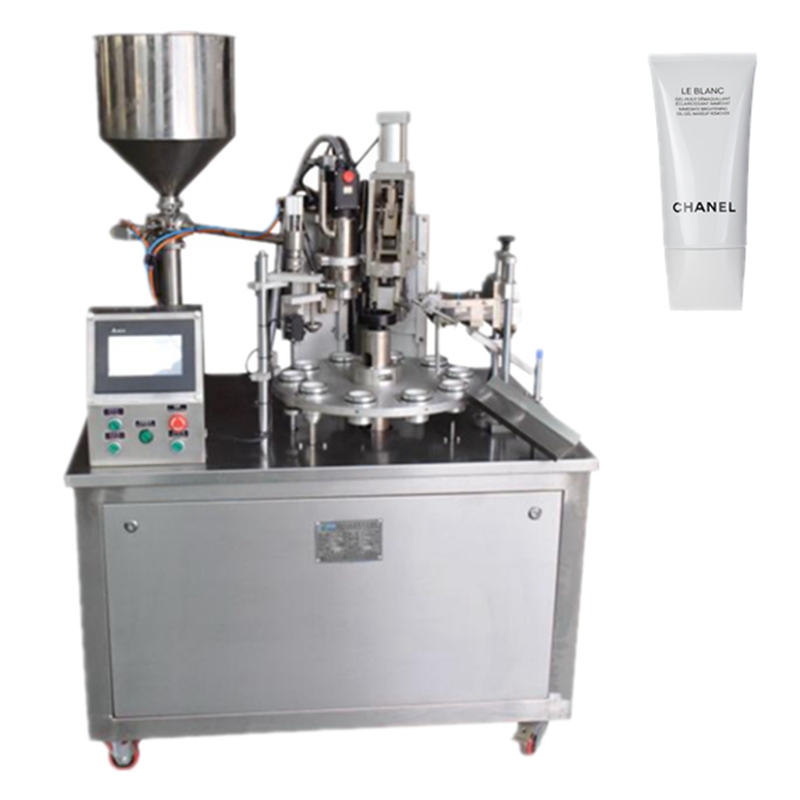

TH-30A Full-automatic filling and sealing machine is a newly upgraded automatic filling and sealing machine developed by our company. It is suitable for precise metering filling and sealing of all kinds of plastic hoses and aluminium-plastic composite pipes. Using Taiwan technology cam divider and internal and external heating technology of copper block, it realizes a series of functions, such as automatic pipe release, automatic marking, high precision liquid filling, paste filling, uniform tail sealing, finished product delivery, etc. It is widely used in pharmaceutical, cosmetic, chemical, adhesive and food industries.
Machine features
1. Reasonable design, simple operation, suitable for multiple sets of moulds, easy replacement.
2. Full-featured, versatile, suitable for all kinds of plastic pipe Aluminum-plastic pipe

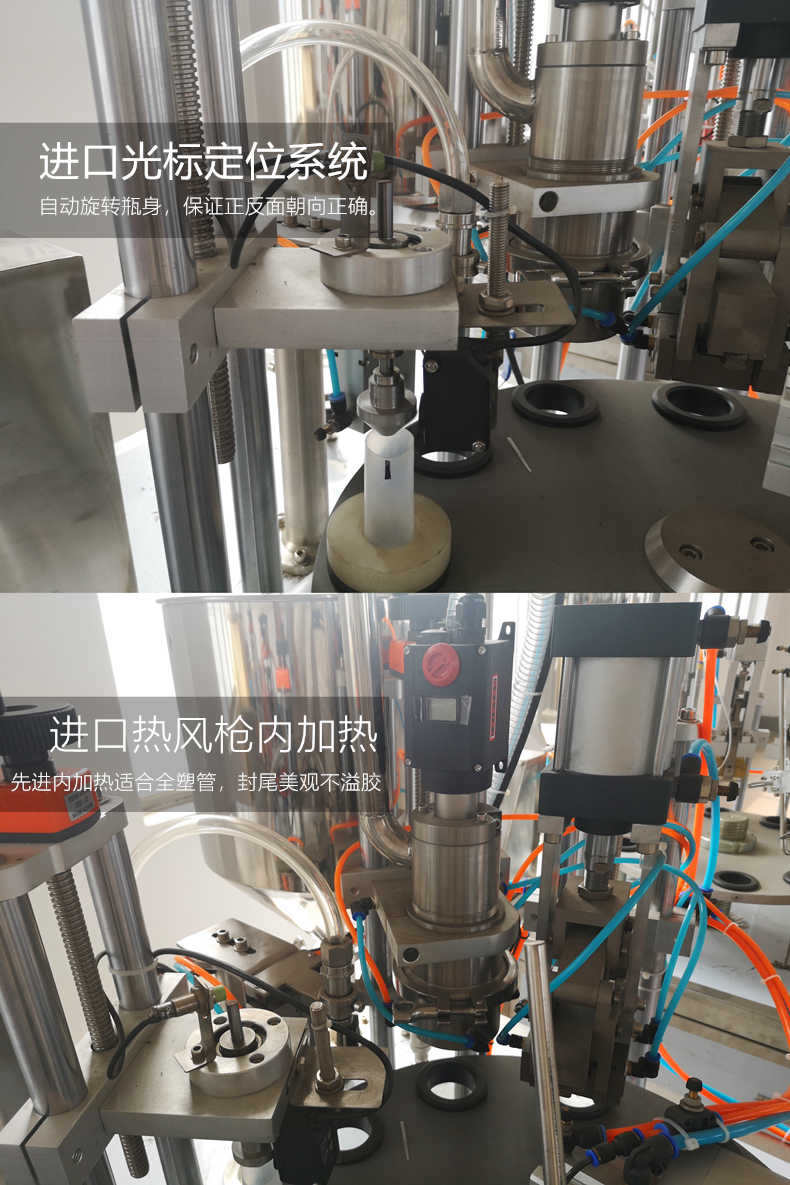

3. Adopting PLC system to control the marking, the color marking detection is more accurate and the service life is long.
4. The material of the contact part with the material is 304 stainless steel, which meets the GMP standard.
5. The connection of each component is in the form of quick-loading, which is convenient for disassembly and cleaning.
6. Optional heat preservation mixing barrel for smooth filling of viscous liquid
7. Use high-quality pneumatic components to ensure more stable operation of the machine
Technical parameter
1. Power supply: 220V, 50Hz, single phase
2. Filling dosage: 2-50 ml, 10-100 ml, 15-150 ml, 20-200 ml, 25-250 ml (selected according to requirements)
3. Applicable diameters: 13-40MM, 40-50MM
4. Suitable tube height: 50mm~250mm
5. Production capacity: 20-30 branches per minute
6. Filling accuracy: +1%
7. Overall size: 1100*800*1600mm
8. Machine weight: 450kg
9. Working Pressure: > 0.4Mpa
