PRODUCT
Application

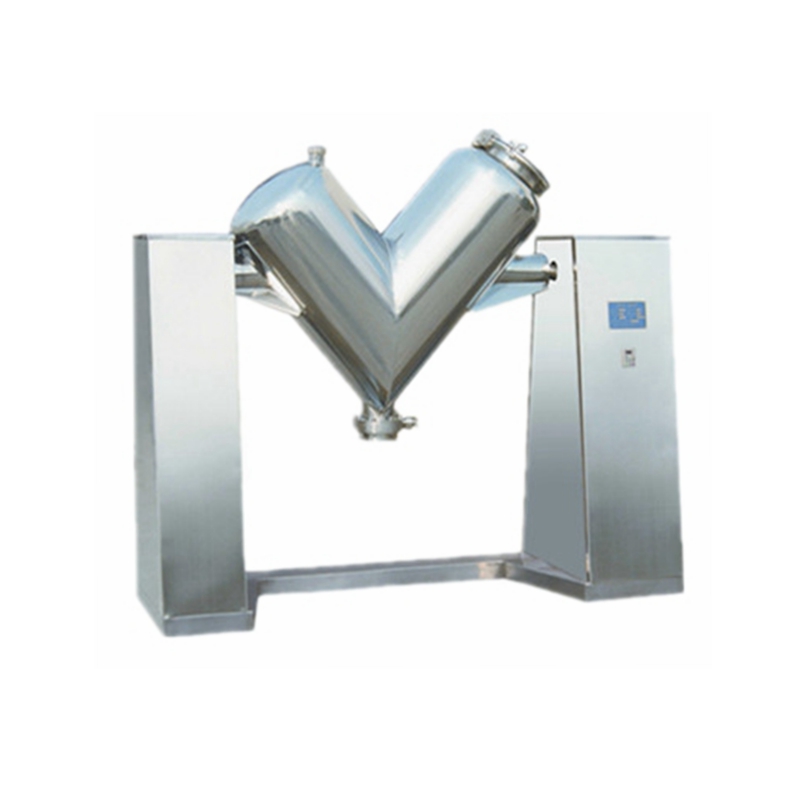

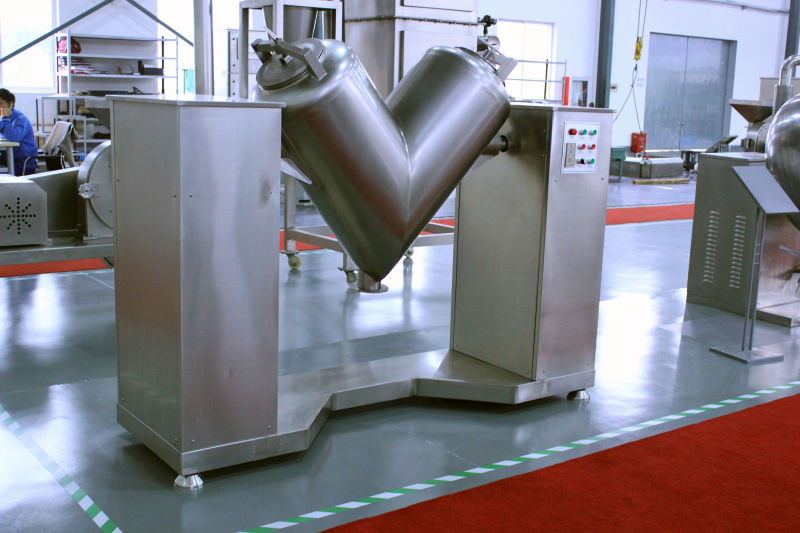

This machine is suitable for pharmacy and other industries, used for mixing the dry granule materials. It adopts manual feed and closed valve disc discharge, which can avoid dust spilling. With unique mixing barrel structure, high efficiency blending, no dead ends. Using stainless steel material, prevent the mixing materials from being polluted.

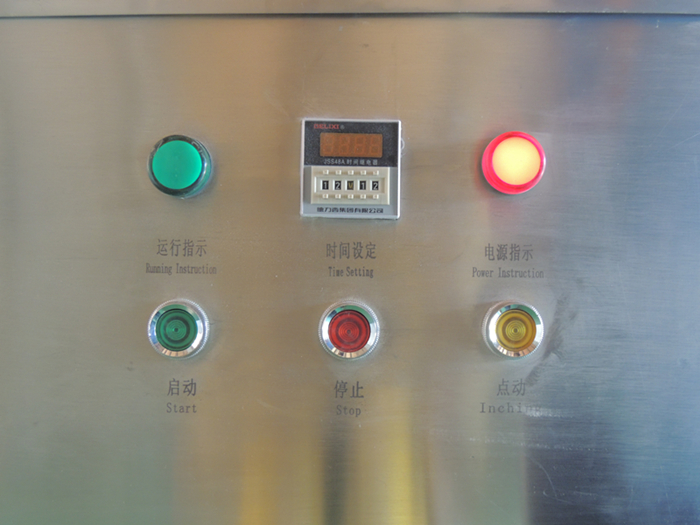

The inside and outside of machine are polished. Mixing the materials evenly and apply to a wide range of fields. It also can be equipped with the compulsory mixer, which is according to the users demand. It is suitable for smaller powder, blocks and the material that contain a certain mixture of water. In addition, the machine is also equipped with a timing device, you can control the material mixing time.
Technical Parameter
|
Model |
VH-50 |
VH-100 |
VH-200 |
VH-300 |
VH-500 |
VH-1000 |
VH-1500 |
|
Total Volume (L) |
50 |
100 |
200 |
300 |
500 |
1000 |
1500 |
|
Mixing Volume (L) |
20 |
40 |
80 |
120 |
150 |
400 |
600 |
|
Mixing Time (min) |
4-8 |
4-8 |
4-8 |
6-10 |
6-10 |
6-10 |
6-10 |
|
Rotating Speed (r/min) |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
|
Rotating Height (mm) |
1500 |
1800 |
2000 |
2200 |
2400 |
2840 |
3010 |
|
Power (KW) |
1.5 |
1.6 |
1.8 |
2.2 |
2.4 |
2.8 |
3.1 |
|
Weight (KG) |
120 |
180 |
280 |
320 |
550 |
950 |
1050 |
